Report Types

There are a variety of different reports you can run on your fleet’s data.

All reports offered are listed below.


Alerts

Alert Detail

All the alerts that occurred in the date range.

The alert subject, message and date/time are displayed as well as the location/address if applicable. There is a summary of alert counts at the top of the page.

Asset Activity & Movement

Activity Detail

The events that occurred for the Assets in the selected date range.

Also summarizes the distance traveled, time in motion and other important information about the assets in a table at the top of the report.

Activity Detail (AEMP)

Displays information detailed in the AEMP specification.

Like the Activity Detail report, a summary table at the top will show total engine time and distance information about your assets.

Activity Summary

Summarizes the distance traveled, time in motion, time stopped, engine time, idle time and other important information about your assets without the details that make up each trip.

Begin/End Day

Shows the first ignition on and last ignition off of each day in the date range.

The ‘Work Day’ time listed is the total time between the two events. The total distance, engine time and final odometer of the day are also listed in the table.

Fleet Summary

Shows summaries of engine/travel/idle time, as well as total distance traveled and total stops over the date range.

Start-Stop

Shows information about trips during the specified date range.

Includes distance traveled, motion time, starting point, ending point start and end time and other information about the trip. A summary table at the top will show totals by asset.

State Mileage

Shows the total distance summarized by state and asset in a cross-tab format.

Stop Duration Report

Shows the events that occurred for the Assets and date range you selected.

Calculates the number of stops, and color codes/highlights stops into 3 levels based on the length of the stop.

Also summarizes the distance traveled, time in motion and other important information about your assets in a table at the top of the report.

Driver Safety

Driver Safety Scorecard

Shows your Fleet Safety Scorecard for your entire fleet, along with the scores of each driver.

You can adjust the top speed threshold for speeding events, and the report will total harsh accelerations, braking, and harsh maneuver events.

Driver Safety Scorecard Detail

Shows the driver safety event details and scores of each driver.

You can adjust the top speed threshold for speeding events, and the report will total harsh accelerations, braking, and harsh maneuver events.

Engine Hours & Utilization

Asset Utilization By Hour

Allows users to analyze how many assets are running per hour per day for a selected timeframe.

The report displays a graphic line chart and 24 hour heat map of the most active hours for your fleet. You can also see the Average # of active Assets per hour and the Daily Average.

Engine Hours By Asset

Totals the engine hours for the entered assets over the entered date range.

Details by asset and date are also provided. This report is calculated by the engine hours provided by the GPS device.

Engine Hours By Day

Totals the engine hours for the entered assets over the entered date range.

Details by asset and date are also provided. This report is calculated by the engine hours provided by the GPS device.

Job Site Utilization

Calculates the total engine hours each asset was in each of the locations selected.

If billing rate is available on the asset, the total billing amount will also be calculated.

Job Site Utilization By Week

Shows the total engine hours that occurred in a single location selected over the date range entered.

This report totals hours by day and asset and shows current engine hours for each of the assets.

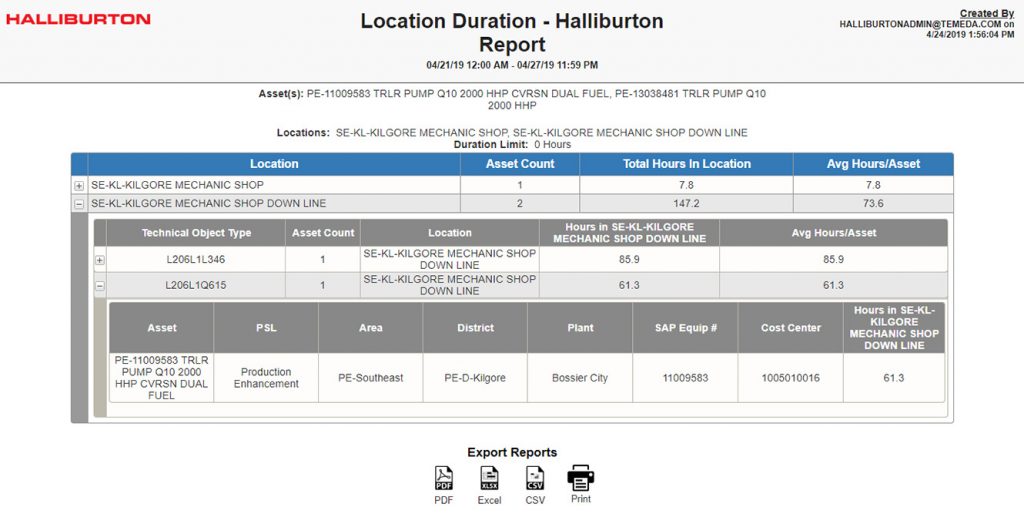

Location Duration – Halliburton

The Location Duration (Halliburton) report totals the amount of time a piece of equipment has been in one or more Locations.

The report shows Asset count, Total Hours per Location, Average Hours per Asset, and breaks the data down by Technical Object Type.

Fuel & Idle

Fuel Economy

Shows the fuel economy over the date range as computed using Total Fuel Used/Total Distance Traveled for assets that provide the information.

Fuel Usage

Totals the fuel consumption per Asset for the selected assets over the entered date range.

Engine Hours and Distance are also shown for the selected timeframe. This report is calculated by the total fuel used provided by the GPS device.

Idle by RPM

Shows the total idle time for the asset over the date range.

Idle for this report is based on the RPM threshold entered by the user when the report was submitted. Only ignition events and events with RPM are evaluated for this report.

An idle event starts on ignition on if the first RPM point is below the threshold or when a following point drops below the RPM threshold. Idle stops when there is a point above the RPM threshold or on ignition off. You can click to see further breakdown by day and again to see the details with addresses of all the idle events.

Idle Report

Shows the total idle time for the asset over the date range.

Click to see further breakdown by day, and click again to see the details with addresses of all the idle events.

Maintenance

Check Engine / Diagnostics (DTC)

Lists any Diagnostic Trouble Codes found for the assets/group and date range selected. Relevant information is provided if found for the trouble code.

Maintenance Status

Shows the due/overdue status information for the selected assets.

There is no date range on this report; the statuses are current and are color-coded based on the percentages entered on the maintenance plan.

Sensors

Binary Sensors

Shows on/off information for the sensors attached to your assets.

Temperature Sensor

Shows information gathered from temperature sensors attached to the asset, as well as daily charts of the temperature variation.

Miscellaneous

Assets and Drivers

Lists each Asset and the history of Drivers assigned to the asset. The report displays Asset/Driver information for the selected assets.

Group Status

The Group Status report is a ‘point-in-time’ report, displaying the assets in a group or groups and the assets’s current location, status, and speed.

If you click the plus sign next to an asset, you can get more detailed information such as the device serial number, odometer and battery voltage.

Proximity

Shows all the events that happened within the selected distance from a location or address.

Lists the description of the event, the location if applicable and the speed if the asset was in motion.
